Floating inflatable obstacle courses draw crowds that standard pool toys never will. But buying one for commercial operation is nothing like ordering land-based inflatables. The water changes everything — materials, anchoring, liability, maintenance. This guide covers what operators actually need to evaluate before signing a purchase order.

What Is a Commercial Water Obstacle Course?

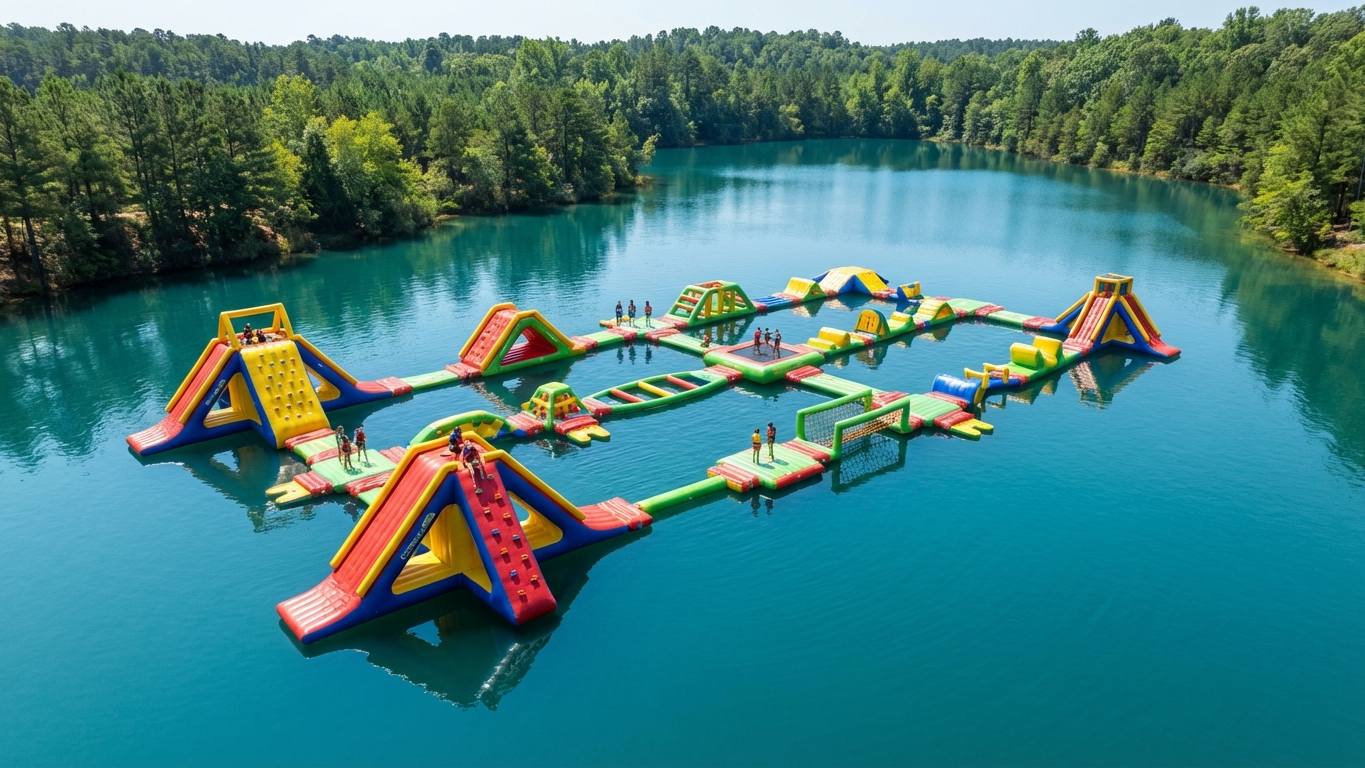

A commercial inflatable water obstacle course is a modular or fixed-layout floating structure designed for supervised public use on lakes, reservoirs, coastal bays, or large pools. Unlike backyard floats, commercial units are built with reinforced PVC, heavy-duty anchor points, and capacities rated for dozens of simultaneous users. They typically include climbing walls, slides, trampolines, balance beams, wiggle bridges, and jumping platforms — all connected into a continuous circuit.

Open-Water vs Pool-Based Designs

Open-water courses sit on lakes, reservoirs, or protected ocean inlets. They require mooring systems anchored to the lakebed and must handle wind, current, and wave action. Minimum water depth is usually 2.5 m (8 ft) beneath the structure. Pool-based units are smaller, anchored to pool edges or floor fittings, and work in depths as shallow as 1.5 m (5 ft). Open-water courses typically range from 30 m to 100+ m in total length, while pool configurations fit within 15–30 m.

Modular vs Fixed-Layout Configurations

Modular systems let you connect individual elements — a climb-and-slide section, a trampoline node, a balance beam bridge — using D-ring and webbing connections. You can reconfigure the layout each season or expand over time. Fixed-layout courses come as a single connected unit and are faster to deploy but offer no flexibility. Most commercial operators prefer modular setups because they can start with 8–10 elements and add more as revenue justifies the investment.

Materials and Construction for Water Use

Land inflatables use 0.55 mm PVC-coated nylon. That is not enough for water. Commercial water obstacle course units should use 0.9 mm double-wall drop-stitch PVC fabric — the same material found in rigid inflatable boats. This gives the platform enough stiffness to walk on without excessive flex, and it resists UV degradation from constant sun-and-water exposure far better than standard bouncer material.

Key construction details to verify:

• Seam welding: Hot-air welded seams (not glued) rated to 150+ kg/m peel strength
• D-ring attachment: Stainless steel 316 D-rings welded directly to the fabric, not riveted
• Anti-slip surface: EVA foam pads or textured PVC on all walking and climbing surfaces
• Reinforced base: Extra layer of PVC on the underside to resist abrasion from sand, rocks, and debris
• Handles and grab lines: Nylon webbing grab handles every 1–1.5 m along all edges

Sizing and Capacity Planning

A mid-size floating obstacle course — roughly 40 m long by 6 m wide — holds 50–60 users at once with comfortable spacing. Larger configurations (80–120 m total footprint) support 100+ simultaneous participants. Each element typically measures 3 m × 3 m to 5 m × 5 m individually, and you need at minimum a 2:1 water-to-course area ratio to allow safe entry and exit around the perimeter.

For capacity planning, budget approximately 3–4 square meters of course surface per user. A 10-element modular course with a combined surface area of around 200 m² comfortably serves 50–65 users per session. Factor in 30–45 minute session times to estimate daily throughput. Most successful operations run 8–12 sessions per day during peak season.

Anchoring, Mooring, and Installation

Anchoring is the single most underestimated part of a water obstacle course installation. A 40 m course with 60 people on it generates massive lateral loads from wind, current, and user movement. The mooring system must handle all three simultaneously.

Standard anchoring approaches:

• Mushroom anchors: 50–100 kg each, suitable for soft lake and river bottoms. Plan for one anchor per 5–8 m of course perimeter.
• Helix screw anchors: Drilled into harder substrates (clay, packed sand). More holding power per unit than mushroom anchors.
• Concrete block deadweights: Used in deep water or where bottom conditions are mixed. Typically 200–500 kg per block.

Mooring lines should be marine-grade nylon or polypropylene with a minimum diameter of 16 mm. Each line needs a scope ratio of at least 3:1 (three meters of line for every meter of depth). Allow for water level fluctuation — lakes can vary 1–2 m across a season. If you plan to set up an inflatable water park, anchoring design should be finalized before any equipment is ordered.

Safety Requirements for Commercial Operations

Water obstacle courses carry higher liability than land units. Every user is in or above open water, often without a flotation device. Commercial operators must address:

• Lifeguard staffing: Minimum one certified lifeguard per 25 users, positioned on elevated platforms with clear sight lines to the entire course
• Personal flotation devices (PFDs): Most jurisdictions require PFDs for all participants. Budget for 1.5× your max capacity to account for sizing and wear rotation.
• Swim competency testing: Require a basic swim test (25 m unassisted) before allowing access
• Age and height minimums: Most operators set a minimum age of 6 and minimum height of 1.1 m (3.6 ft)
• Perimeter safety zone: Maintain a minimum 3 m clear-water buffer around the entire course with no boats, docks, or fixed structures

Local regulations vary significantly. Check with your municipal authority, coast guard (for navigable waters), and insurance carrier before finalizing your layout. Operating without proper permits can result in immediate shutdown and fines.

Maintenance and Seasonal Storage

Salt water, algae, UV radiation, and constant wet-dry cycles are harder on inflatables than anything a land unit faces. A realistic maintenance schedule includes:

• Daily: Inspect air pressure (drop-stitch chambers should hold 10–15 PSI), check anchor line tension, clean debris from surfaces
• Weekly: Scrub anti-slip pads to remove algae buildup, inspect D-rings and seam joints for wear, test blower output
• Monthly: Full deflation and inspection of underside fabric, lubricate stainless steel hardware, replace any worn grab handles
• End of season: Thorough cleaning with mild detergent (no bleach), complete drying (72+ hours), and storage in a dry, climate-controlled space

Expect a 5–7 year commercial lifespan with proper care. Salt water environments shorten this to 4–5 years. Patching kits and replacement D-ring hardware should always be on hand. Operators managing broader inventories of water world inflatables should establish a unified maintenance calendar across all assets.

ROI and Revenue Potential

Water obstacle courses are among the highest-revenue attractions in aquatic recreation. A 40–50 m course at a lake venue can run 10 sessions per day at 50 users per session across a 90-day summer season. Even at conservative session fees, the math works quickly in the operator's favor.

Revenue drivers beyond session fees:

• Group and birthday party packages (20–40% premium over walk-in rates)
• Season passes for repeat visitors
• Photography and video upsells
• Concession and merchandise tie-ins at the waterfront

Most operators report full payback within the first or second operating season. Modular courses let you expand incrementally — add two or three elements each year to keep the experience fresh and justify return visits. Pairing a floating course with complete water parks can double waterfront capacity and diversify your attraction lineup.

What to Ask Your Supplier Before Ordering

Not all manufacturers understand commercial water applications. Before committing to an inflatable water obstacle course for sale, verify these points:

• Material spec sheet: Confirm 0.9 mm PVC minimum, hot-air welded seams, and 316 stainless steel hardware
• Load test documentation: Ask for third-party load testing data, not just rated capacity claims
• Anchoring guidance: A good supplier provides a site-specific mooring plan, not generic instructions
• Warranty terms: Look for 3+ years on seams and fabric, 1+ year on hardware and accessories
• Lead time and shipping: Commercial water courses ship by sea freight. Factor 30–60 days from order to delivery.
• Spare parts availability: Confirm the supplier stocks replacement bladders, D-rings, anchor hardware, and repair kits

If you are new to commercial inflatables, reading a general inflatable obstacle course buying guide before narrowing your search to water-specific units will help you understand baseline specifications. And if your operation includes land-based attractions as well, browse the full range of obstacle courses to compare construction standards side by side.

A water obstacle course is a significant capital investment, but it is also one of the most proven revenue generators in outdoor recreation. Get the materials, anchoring, and safety plan right from day one, and the asset will pay for itself well before it needs replacing.
